What is USB Protocol?

The USB protocol or universal serial bus was first developed and launched by Ajay V. Bhatt from Intel in the year 1996. The USB (Universal Serial Bus) protocol is a standard interface designed to facilitate communication between a wide range of peripheral devices, such as mice, digital cameras, printers, keyboards, media devices, scanners, flash drives, external hard drives, and a host controller like a smartphone or PC. This protocol streamlines the process of connecting devices, allowing for seamless interaction and data transfer.

One of the standout features of the USB protocol is its support for hot swapping and plug-and-play functionality. Hot swapping refers to the ability to remove and replace peripheral devices without the need to reboot the host system. This makes it incredibly convenient for users to connect and disconnect devices on the fly. Plug-and-play, on the other hand, enables the operating system to automatically detect and configure new peripheral devices as soon as they are connected, without requiring the user to restart the computer. This spontaneous recognition and configuration significantly enhance the user experience by simplifying device setup and operation.

The market offers various types of USB connectors, each suited for different applications and devices. The most frequently used connectors have traditionally been Type A and Type B. Type A connectors are typically found on host devices like computers and gaming consoles, while Type B connectors are commonly used on peripheral devices such as printers and scanners. However, advancements in technology have led to the development and adoption of newer, more compact connectors like Mini-USB, Micro-USB, and USB-C.

Mini-USB and micro-USB connectors became popular due to their smaller size, making them ideal for portable devices like smartphones, tablets, and digital cameras. The USB-C connector, the latest evolution in USB technology, offers several advantages over its predecessors. It is reversible, meaning it can be plugged in either way, which eliminates the frustration of aligning the connector correctly. Additionally, USB-C supports higher data transfer rates, and greater power delivery, and can carry multiple types of data streams, including video and audio, through a single cable. This versatility makes USB-C an increasingly popular choice for modern devices, leading to the gradual phasing out of older connector types.

In summary, the USB protocol is a crucial component of modern computing and electronics, providing a reliable, user-friendly interface for connecting a wide array of peripheral devices to host controllers. Its support for hot swapping, plug-and-play functionality, and the evolution of connector types have greatly contributed to its widespread adoption and continued relevance in the industry.

Pin Configuration

The typical Type-A USB connector is widely used in various applications, particularly in connecting peripheral devices to a PC. This connector is the standard four-pin USB type, known for its taller and narrower design, with the pins arranged within a rectangular box.

Type-A USB Connector Pin Configuration

The Type-A USB connector features four pins, each designated by a specific color and function. Here’s a detailed description of each pin and its role:

Pin1 (VBUS)

• Color: Red
• Function: This pin is responsible for providing the power supply to the connected device. It delivers a voltage of 5V, which is standard for USB connections. The power supply allows the peripheral device to operate and, if needed, charge its internal battery.

Pin2 (D-)

• Color: White
• Function: This pin is one-half of the differential pair used for data transfer. The D-pin carries data signals and works in conjunction with the D+ pin to transmit information between the host and the peripheral device. The differential signaling helps reduce electromagnetic interference, ensuring reliable data communication.

Pin3 (D+)

• Color: Green
• Function: This pin is the other half of the differential pair used for data transfer. Similar to the D- pin, the D+ pin also carries data signals. The differential pair (D- and D+) is crucial for USB communication, as it allows for the detection of data changes and maintains data integrity during transmission.

Pin4 (GND)

• Color: Black
• Function: This pin is the ground pin, providing a common return path for the electrical current. The ground connection is essential for completing the circuit and ensuring stable and reliable operation of the USB connection.

Data Transfer Explanation

In the USB Type-A connector, data transfer occurs through the D+ and D- pins using differential signaling. This method involves sending data across two wires (D+ and D-) to reduce noise and increase the reliability of the signal. When a ‘1’ (binary one) is sent across the wires, the D+ line carries a positive voltage relative to the D- line. Conversely, when a ‘0’ (binary zero) is sent, the D+ line carries a negative voltage relative to the D- line. This differential approach allows the USB protocol to maintain high-speed data transfer while minimizing errors and signal degradation.

The Type-A USB connector’s pin configuration plays a vital role in its functionality, supporting power delivery and efficient data transfer. The clearly defined roles of each pin (VBUS, D-, D+, and GND) ensure that peripheral devices can connect to host systems like PCs seamlessly. This design, coupled with the USB protocol’s robust data transfer mechanisms, has made the Type-A USB connector a staple in modern electronic connectivity.

USB Protocol Architecture

The architecture of the USB (Universal Serial Bus) protocol is designed to efficiently connect various I/O (Input/Output) devices to a computer, creating a structured and hierarchical network of connected devices. This architecture is visually represented in a tree-like structure, where each I/O device establishes a point-to-point connection for data transmission through a serial transmission format. This arrangement ensures organized and efficient communication between devices and the host computer.

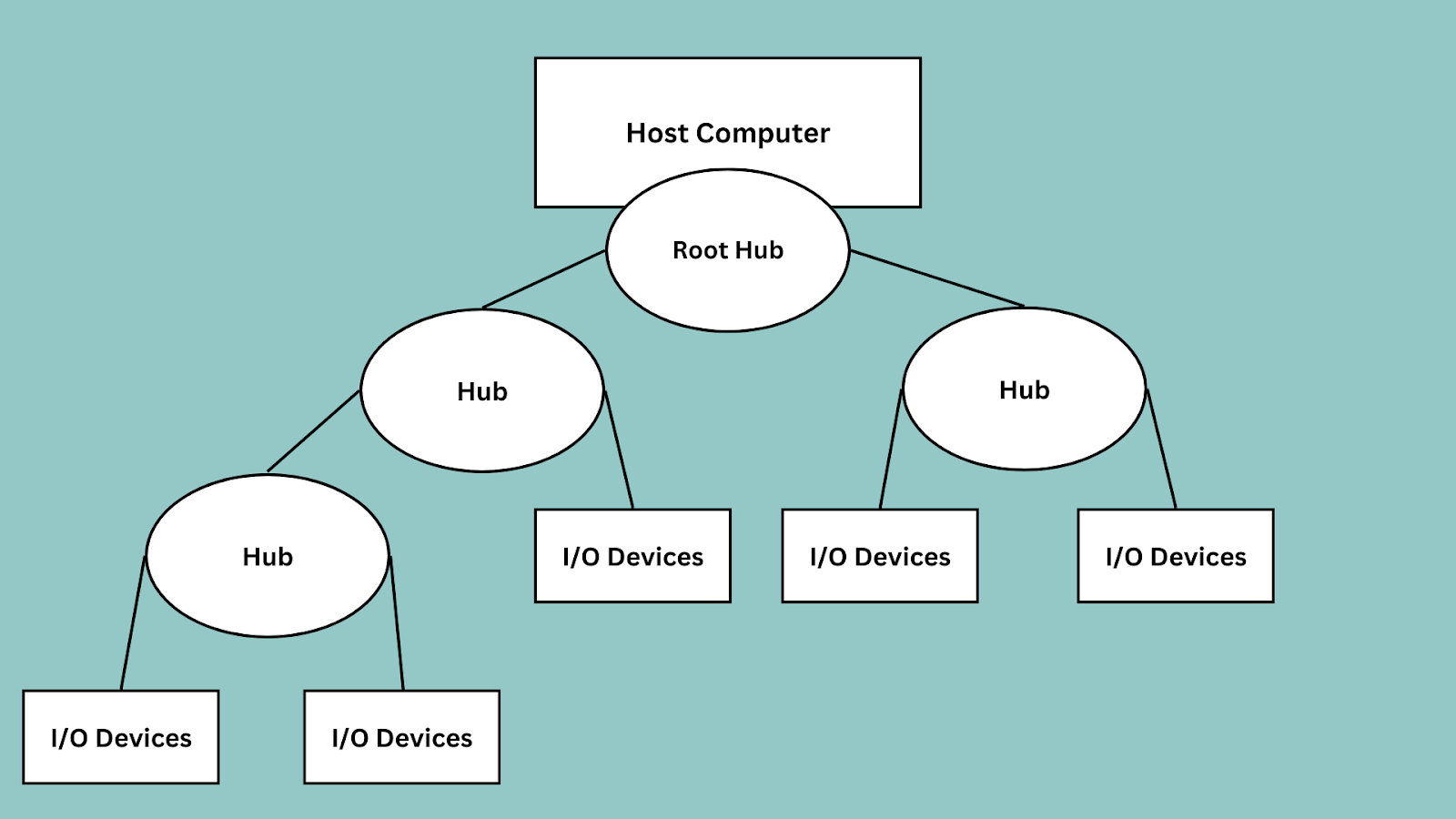

Hierarchical Structure

In the USB protocol architecture, multiple I/O devices are connected to a computer via USB hubs. A USB hub acts as a central node that provides additional USB ports, allowing multiple devices to connect to the computer.

Here’s a detailed look at the components and their roles within this architecture:

Root Hub

The root hub is the primary hub directly connected to the host computer. It serves as the central point of the entire USB structure, providing the initial connection between the computer and the USB network. The root hub is typically integrated into the host controller, which is part of the computer’s motherboard.

Hubs

Hubs are intermediary devices that expand the number of available USB ports. They connect to the root hub or other hubs, creating additional branches in the USB tree structure. Each hub can support multiple downstream devices, effectively increasing the number of devices that can be connected to the host computer.

I/O Devices

Various I/O devices, such as keyboards, mice, speakers, cameras, printers, and external storage devices, connect to the USB hubs. These devices utilize the USB protocol for data transmission and power supply. Each device establishes a point-to-point connection with the hub it is connected to, facilitating efficient data exchange.

Data Transmission

The USB protocol employs a serial transmission format for data communication. In serial transmission, data is sent sequentially over a single channel, allowing for streamlined and efficient data transfer. Here’s how data transmission works within the USB architecture:

• Point-to-Point Connection: Each I/O device communicates with the host computer through a dedicated point-to-point connection via the USB hub. This ensures that data transfer is direct and avoids potential bottlenecks that could occur with shared connections.
• Differential Signaling: The USB protocol uses differential signaling for data transmission, which involves sending data across two wires (D+ and D-). This method helps reduce electromagnetic interference and maintains data integrity by allowing the receiver to distinguish between the actual data signal and any noise or interference.
• Hub Coordination: USB hubs coordinate the data flow between the connected I/O devices and the host computer. They manage data traffic, ensuring that each device communicates effectively without interference from other devices.

Example Devices in the Architecture

In a typical USB architecture, a variety of I/O devices can be connected to the computer. Some common examples include:

• Keyboard: Allows the user to input text and commands.
• Mouse: Provides a pointing and clicking interface for user interaction.
• Speaker: Outputs audio from the computer.
• Camera: Captures images and video for input to the computer.
• Printer: Outputs hard copies of digital documents.
• External Storage: Provides additional storage space and data transfer capabilities.

The USB protocol architecture’s tree-like structure, with its hierarchical organization of hubs and I/O devices, facilitates efficient and organized connectivity. The use of point-to-point connections and serial transmission ensures reliable and high-speed data transfer, making USB an essential interface for modern computing. This architecture supports a wide range of peripheral devices, enhancing the functionality and versatility of host computers.

How Does the USB Protocol Work?

The USB protocol operates on the principle of polling, where the processor continuously checks the status of input/output (I/O) devices to determine if they are ready to transmit data. This means the I/O devices do not need to inform the processor of their status, as it is the processor’s responsibility to monitor them. This polling mechanism helps keep the USB system low-cost and simple.

Device Initialization and Polling

When a new device is connected to a USB hub, it is initially assigned the address ‘0’. During regular intervals, the host computer polls the hubs to check their status. This polling allows the host to identify whether any new I/O devices have been connected or if any have been disconnected.

Once the host detects a new device, it reads the device’s capabilities by accessing the data stored in the device’s USB interface memory. The host then uses this information to load the appropriate driver needed for communication with the device. Subsequently, the host assigns a unique address to the new device, which is written to the device’s register. This process enables the USB’s plug-and-play functionality, allowing the host to automatically recognize and configure new devices as they are connected.

Plug-and-Play and Hot-Pluggable Features

The plug-and-play feature of the USB protocol allows the host to automatically identify and configure new I/O devices as soon as they are connected. The host software determines the capabilities of the connected devices and sets them up for use without requiring manual intervention.

Another significant feature of the USB protocol is its “hot-pluggable” capability. This means that I/O devices can be connected to or removed from the host system without the need to shut down or restart the computer. The system continues to run smoothly, accommodating the addition or removal of devices on the fly.

Isochronous Data Transfer

The USB protocol also supports isochronous data traffic, where data is transmitted at predefined intervals. Isochronous data transfer is faster compared to synchronous and asynchronous data transfer. To manage isochronous traffic, the root hub sends a series of bits over the USB that indicate the start of isochronous data transmission. The actual data is transmitted immediately after this series of bits, ensuring timely and efficient data transfer.

In essence, the USB protocol’s reliance on the polling principle simplifies its design and reduces costs. Its plug-and-play and hot-pluggable features enhance user convenience by allowing automatic device recognition and the ability to add or remove devices without disrupting the system. Additionally, the protocol’s support for isochronous data transfer ensures efficient handling of time-sensitive data, making USB a versatile and user-friendly interface for connecting a wide range of I/O devices.

USB Protocol Features

The USB protocol boasts a range of features that enhance its functionality and versatility:

High Speed: USB 2.0 supports data transfer speeds of up to 480 Mbps, allowing for quick and efficient data exchange.

Extended Length: A single USB connection can span up to 40 meters when using hubs, and up to five meters without hubs.

Plug and Play: USB devices are designed to be plug-and-play, meaning they can be connected and used without requiring manual configuration or system restarts.

Power Supply: USB devices can draw power directly from the host computer or use their independent power supply.

Multiple Connections: A single USB host controller can support the connection of over 100 peripheral devices.

Power Specifications: USB devices operate at up to 5V and can draw up to 500 mA of current.

Power-Saving Mode: Certain USB devices can automatically enter sleep mode when the connected computer switches to a power-saving mode.

Two-Wire System: USB cables typically consist of two wires: one for power and one for data transmission.

Power Delivery: The host computer can supply up to 500 mA of current at 5V through the USB power wires.

Low-Power Devices: Devices with low power requirements can draw the necessary power directly from the USB connection.

Bidirectional Communication: USB enables two-way communication between the host computer and peripheral devices, facilitating interactive and dynamic data exchange.

USB Standards and Specifications

USB, or Universal Serial Bus, encompasses a range of standards tailored to meet diverse connectivity needs across different devices. Each standard offers specific capabilities that cater to various data transfer speeds, cable lengths, power delivery options, and connector types, ensuring compatibility and performance across a wide array of applications.

Overview of Speed Categories

USB supports three primary speed categories:

• Low Speed: Operating at 1.5 Mbps, suitable for basic peripherals with minimal data requirements.
• Full Speed: Provides a transfer rate of 12 Mbps, ideal for devices needing moderate data throughput.
• High Speed: Offering speeds up to 480 Mbps, designed for devices such as external hard drives and high-resolution cameras that demand fast data transfer.

USB 2.0 Standard

• Speed and Compatibility: USB 2.0 operates at a maximum speed of 480 Mbps, supporting all USB connectors commonly used for peripherals and devices.
• Cable Length: Cables can extend up to 5 meters, facilitating flexible placement of devices.
• Power Delivery: Capable of delivering up to 15W of power, ensuring devices receive sufficient power for operation and charging.

USB 3.2 Standard

1. Generation 1:

• Speed: USB 3.2 Gen 1 achieves a data transfer rate of 5 Gbps, significantly faster than USB 2.0, making it suitable for high-definition video streaming and fast data backup.
• Cable Length: Supports cables up to 3 meters in length, maintaining signal integrity over longer distances.
• Power Capability: Provides a power delivery capacity of up to 15W, ensuring devices can charge efficiently.

2. Generation 2:

• Enhanced Speed: USB 3.2 Gen 2 ramps up the speed to 10 Gbps, doubling the data transfer rate of Gen 1, ideal for external storage devices and high-performance peripherals.
• Cable Length: Restricts cable length to 1 meter for optimal signal integrity and performance.
• Power Delivery: Enhances power delivery to a maximum of 100W, enabling fast charging for devices that require higher power levels.

3. Generation 2×2:

• Speed Advancement: USB 3.2 Gen 2×2 pushes boundaries with speeds of up to 20 Gbps, catering to demanding applications such as ultra-high-definition video editing and data-intensive tasks.
• Cable Length: Maintains the 1-meter cable limit for reliable data transmission and power delivery.
• Power Provision: Supports power delivery of up to 100W, ensuring robust charging capabilities across multiple devices simultaneously.

Thunderbolt 3 Standard

• Unparalleled Speed: Thunderbolt 3 boasts speeds of up to 40 Gbps, surpassing even USB 3.2 Gen 2×2, making it ideal for professional-grade video editing, 3D rendering, and high-performance computing tasks.
• Cable Length: Offers flexibility with cable lengths up to 2 meters for active cables and 0.8 meters for passive cables, ensuring reliable connectivity over varying distances.
• Power Delivery: Provides power delivery of up to 100W, accommodating power-hungry devices like laptops and external monitors seamlessly.

USB 4 Standard

• Thunderbolt 4 Integration: USB 4 inherits Thunderbolt 3’s capabilities, delivering speeds of up to 40 Gbps and maintaining backward compatibility with USB 3.2 and earlier versions.
• Cable Length: Supports cable lengths of up to 2 meters for active cables and 0.8 meters for passive cables, ensuring optimal signal integrity and performance across connected devices.
• Power Provision: Offers robust power delivery of up to 100W, making it suitable for charging laptops, powering monitors, and supporting high-performance peripherals effortlessly.

These standards and specifications underscore the evolution and versatility of USB technology, catering to the increasing demands of modern computing, multimedia, and connectivity requirements across a broad spectrum of devices and applications.

USB Data Format

In the USB protocol, the master devices, known as USB hosts, initiate all communication over the USB bus. Typically, a computer or another controller serves as the master device. These hosts send requests and the peripheral (slave) devices respond. Peripheral devices, such as keyboards, mice, USB flash drives, and cameras, connect to the host device and provide the necessary information for the host to operate.

Effective communication between the host and peripheral devices is crucial. When a peripheral device is connected to a computer via USB, the computer recognizes the device type and automatically loads the appropriate driver to enable functionality.

Data Packets

Data exchanged between devices is sent in small units called ‘packets.’ Each packet transfers a unit of digital information. The USB protocol handles data transfer through several packet types, each serving a specific function.

Packet Types

There are four main types of USB packets: Token, Data, Handshake, and Start of Frame (SOF). Each packet comprises different fields.

USB Packet Fields

SYNC Field

Every USB packet starts with a SYNC field, used to synchronize the transmitter and receiver, ensuring accurate data transmission. In low and high-speed USB systems, the SYNC field consists of 3 KJ pairs followed by 2 K’s, forming an 8-bit data sequence. In high-speed USB systems, the SYNC field comprises 15 KJ pairs followed by 2 K’s, forming a 32-bit data sequence. This field helps synchronize the clocks of the transmitter and receiver, with the last 2 bits indicating the start of the Packet Identifier (PID) field.

Packet Identifier Field (PID)

The PID field identifies the type of packet being transmitted and its data format. It is 8 bits long, with the upper 4 bits indicating the packet type and the lower 4 bits being the bitwise complement of the upper 4 bits.

Address Field

The address field specifies the intended recipient of the packet. It is 7 bits long, allowing support for up to 127 devices. Address zero is reserved for devices that have not yet been assigned an address.

Endpoint Field

The endpoint field is 4 bits long and provides additional addressing flexibility. It distinguishes between data moving IN and OUT. Endpoint ‘0’ is a special case called the CONTROL endpoint, which every device includes.

Data Field

The data field’s length varies from 0 to 8192 bits and is always an integral number of bytes.

CRC Field

Cyclic Redundancy Checks (CRC) are used to ensure data integrity. Token packets have a 5-bit CRC, while data packets have a 16-bit CRC. The CRC-5 is used by token and start-of-frame packets.

EOP Field

Every packet concludes with an End of Packet (EOP) field, consisting of a single-ended zero (SE0) for 2-bit times followed by a J for 1-bit time.

USB Data Transmission

The USB protocol operates with the master device (host) initiating communication. Peripheral devices, programmed to respond to the host’s requests, provide necessary data for operations. This structured approach ensures seamless interaction between various devices and the host, facilitating effective data transfer and device functionality.

USB Protocol Timing Diagram

The USB protocol timing diagram is a crucial tool used in engineering to illustrate the on/off states of USB wires over a period. It provides a visual representation of data transmission, showcasing how the values on the wires change with time.

Understanding the Diagram

• Bit Representation: In the diagram, a ‘1’ indicates no change in the signal (idle state), while a ‘0’ signifies an active state (signal transition).
• Timeline: As time progresses, the transitions between the on (active) and off (idle) states are displayed, showing how data is encoded and transmitted.

NRZI Encoding

NRZI Encoding stands for Non-Return to Zero Invert (NRZI) encoding. This method is efficient for data transmission because it reduces the number of signal transitions, conserving bandwidth and minimizing errors.

Key Features of NRZI Encoding:

• No Signal Change for ‘1’: When the data bit is ‘1’, the signal remains in its current state (no change).
• Signal Change for ‘0’: When the data bit is ‘0’, the signal transitions to the opposite state.
• Efficiency: NRZI encoding is advantageous as it minimizes the number of transitions, leading to more reliable data transmission over USB.

Bit Stuffing

Bit stuffing is a technique used to maintain synchronization between the transmitter and receiver. If the data stream contains too many consecutive ‘1’s, synchronization can be lost. To prevent this, extra bits (logic 1s) are inserted into the data stream.

How Bit Stuffing Works:

• Inserting Extra Bits: If a long sequence of ‘1’s is detected, an additional ‘0’ bit is inserted after every six consecutive ‘1’s to ensure synchronization.
• Synchronization Maintenance: These inserted bits (stuffed bits) help maintain the synchronization between the USB host and the peripheral device.
• Overhead: Although bit stuffing introduces some overhead to the USB transmission, it ensures a consistent and reliable data transfer process by preventing synchronization issues.

USB Timing Diagram Example

The following example illustrates a typical USB timing diagram using NRZI encoding and bit stuffing:

Time	Data Bits	NRZI Signal	Comments
t0	0	Transition	Signal transition (0 bit)
t1	1	No Change	No change in signal (1 bit)
t2	1	No Change	No change in signal (1 bit)
t3	0	Transition	Signal transition (0 bit)
t4	1	No Change	No change in signal (1 bit)
t5	1	No Change	No change in signal (1 bit)
t6	1	No Change	No change in signal (1 bit)
t7	1	No Change	No change in signal (1 bit)
t8	0	Transition	Bit stuffing to maintain sync
t9	1	No Change	No change in signal (1 bit)
t10	0	Transition	Signal transition (0 bit)

In this example, the data stream includes a sequence of bits. NRZI encoding shows how the signal changes (or doesn’t change) based on the data bits. Bit stuffing is applied after detecting six consecutives ‘1’s to ensure synchronization.

Synchronized Issues in USB Protocol

When developing USB devices, developers often encounter various synchronization issues, also known as communication errors. These issues can lead to system failures and disrupt the normal operation of USB connections. Some common synchronization problems within the USB protocol include:

Improper Packet Data & Data Sequencing

Errors in packet data and sequencing can cause communication breakdowns between the host and peripheral devices. This can lead to incorrect data being transmitted or received, resulting in system malfunctions.

Transmissions or Retransmissions

Issues with data transmissions or the need for retransmissions can occur due to signal interference, timing problems, or hardware faults. This can slow down data transfer rates and affect the overall performance of the USB system.

Power or VBUS-based Issues

Power-related problems, such as insufficient power supply or voltage inconsistencies on the VBUS line, can cause devices to malfunction or fail to operate. Ensuring stable and adequate power supply is crucial for reliable USB communication.

Troubles through Enumeration

Enumeration issues arise when a USB device fails to be correctly recognized and configured by the host. This can be due to faulty hardware, improper driver installation, or compatibility problems.

High-speed Negotiation Problems

High-speed negotiation problems occur when devices fail to establish a high-speed connection. This can be caused by signal integrity issues, cable quality, or mismatched USB standards.

Addressing Synchronized Issues

To mitigate these synchronization issues, USB developers need to follow best practices, such as:

• Thorough Testing: Conduct comprehensive testing of USB devices under various conditions to identify and resolve communication errors.
• Proper Hardware Design: Ensure that the hardware design meets USB specifications and standards to avoid power and signal integrity problems.
• Firmware Updates: Regularly update firmware to fix known issues and improve device compatibility.
• Quality Components: Use high-quality components, including cables and connectors, to reduce the likelihood of transmission errors and power issues.
• Driver Compatibility: Ensure that the correct and updated drivers are installed for the USB devices to function properly.

By addressing these common issues, USB developers can improve the reliability and performance of their devices, ensuring smooth and efficient communication between the host and peripherals.

Advantages of USB

USB technology offers numerous advantages, making it a preferred choice for connecting peripheral devices to computers and other host devices:

Ease of Use: USB devices are plug-and-play, requiring no manual configuration or drivers.

Single Interface: A single USB interface can connect multiple devices, reducing the need for multiple ports and cables.

Compact Size: USB connectors and cables are small and space-saving, suitable for modern slim devices.

Robust Connectors: USB connectors are durable and withstand repeated plugging and unplugging.

Cost-Effective: USB devices and accessories are generally inexpensive.

Variety of Sizes: Available in various sizes and types (USB-A, USB-B, Mini-USB, Micro-USB, USB-C), ensuring wide compatibility.

Auto Configuration: Devices are automatically configured by the host system upon connection.

Easy Expansion: USB hubs allow easy expansion of available ports for additional devices.

High-Speed Data Transfer: USB standards like USB 3.0 and USB 3.2 offer high-speed data transfer rates up to 10 Gbps.

Reliability and Low Cost: Standardized design ensures consistent performance and affordability.

Low Power Consumption: USB devices consume low power, with many ports providing power to connected devices.

Compatibility and Durability: Widely compatible with various operating systems and hardware, USB devices are durable and reliable.

Disadvantages of USB

While USB technology offers many advantages, it also has some disadvantages:

Quality Variability: Some manufacturers produce low-quality USB devices to reduce costs, which can lead to reliability and performance issues.

Limited Capacity: USB drives have limited storage capacity compared to other storage solutions, which may not be sufficient for large data requirements.

Data Transfer Speed: Compared to other technologies like Thunderbolt or eSATA, USB’s data transfer speed can be slower, particularly with older USB standards.

Lack of Broadcasting Feature: USB does not support broadcasting, meaning it can only communicate directly between the host and peripheral devices, limiting its use in some networking and communication applications.

Applications of USB Protocol

USB protocol is widely used across various devices and industries due to its versatility and ease of use. Here are some key applications:

Peripheral Devices

Most modern peripheral devices connect to systems via USB, including:

• Mice
• Printers
• Scanners
• Joysticks
• Modems
• Webcams
• Keyboards
• Digital cameras
• Storage devices
• Flight yokes
• Network adapters
• Data acquisition devices in scientific fields

Computers

USB is commonly used in computers for connecting to hubs and host controllers, facilitating communication with multiple devices.

Compact Devices

USB Type-B is often used to connect compact devices, such as mobile phones and USB peripherals like printers.

PCs, Consoles, and Smartphones

USB is frequently used in PCs, video game consoles, and smartphones for charging, data transfer, and connecting various peripherals.

Data Storage

USB flash drives and external hard drives are popular for portable data storage, backup, and transfer.

Networking

USB network adapters provide network connectivity for computers without built-in Ethernet ports or Wi-Fi capabilities.

Industrial and Scientific Applications

USB is used in industrial and scientific applications for data acquisition, instrumentation, and control systems, allowing seamless integration of various devices and sensors.

Consumer Electronics

Many consumer electronics, such as cameras, MP3 players, and tablets, use USB for charging and data transfer, enhancing their functionality and convenience.

Conclusion

The USB protocol, developed in 1996 by Ajay V. Bhatt from Intel, revolutionized device connectivity with its hot-swapping and plug-and-play capabilities, facilitating seamless interaction and data transfer between peripheral devices and host controllers like PCs and smartphones. This versatile standard supports various connectors—Type A, Type B, Mini-USB, Micro-USB, and the latest USB-C—offering higher data transfer rates, greater power delivery, and multifunctionality. USB’s architecture, based on a hierarchical hub-and-spoke model, ensures efficient data transmission and power supply through a structured network of interconnected devices. It uses a polling mechanism for device initialization, supports isochronous data transfer for timely communication, and employs robust error-checking through CRC. Standards like USB 2.0, 3.2, Thunderbolt 3, and USB 4 cater to diverse speed, power, and connectivity requirements, making USB an essential and enduring interface in modern computing and electronics.
